Vacutainer& Syringe Turnkey Project

  • Blood Collection Tube Turnkey Project
Blood Collection Tube Turnkey Project

Blood Collection Tube Turnkey Project

  • Brief Introduction:

    Sino Pharmatec is the pioneer supplier of turnkey plants that provides integrated engineering solution for worldwide pharmaceutical and medical factory such as vacuum blood collection tube, syringe, blood collection needle, IV solution, OSD etc., in compliance with EU GMP, US FDA cGMP, PICS, and WHO GMP.

  • EMAIL

Project description

Sino Pharmatec vacuum blood collection tube turnkey plant include the clean room, auto-control and monitoring system, pharmaceutical water treatment system, cap and tube injection system, vacuum blood collection tube assembling line, packing system, air compressor, quality control system, central laboratory and etc. Focused on customers’ individual requirements, IVEN customizes engineering solutions meticulously for users on:

*Pre-engineering consulting service
*Production process selection
*Equipment model selection and customization
*Installation and commissioning
*Validation of the equipment and process
*Production technology transferring
*Hard and soft documentation
*Training for skilled workers and so on.


Based on the deep research of the US BD vacutainer, we adopted the most advanced vacuum blood collection tube production technology, and supply the most advanced technology for vacuum blood collection tube turnkey plant.


Latest Production Line

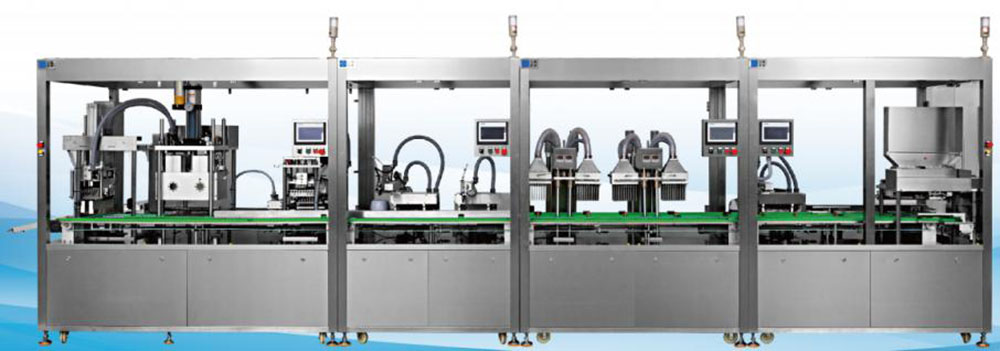

S/S 304 Combination type vacuum blood collection tube assembling line

We have an intelligent R&D team, a very aggressive and elaborate technician team, and a very high-efficient and cooperative after-sales service team, we contributed all our efforts to the development of vacuum blood collection tube production machinery, thus we achieve the leading manufacture position in the field of vacuum blood collection tube assembling line and turnkey plant in China, and promoted China vacuum blood collection tube industry developed to a high level.

Vacuum blood collection tube turnkey plant includes:

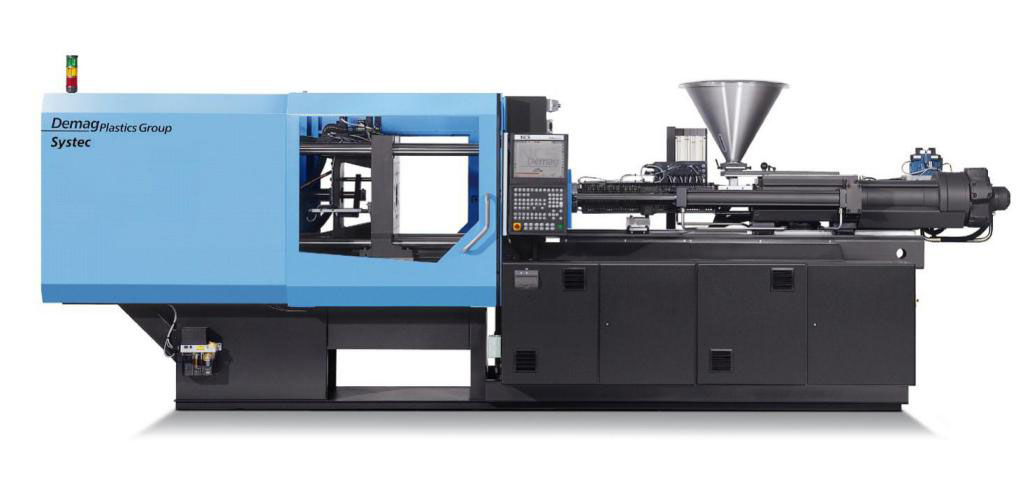

1.Injection molding machine for tubes and caps:

To inject the vacuum blood collection tubes and caps, we use Germany brand injection machine, to work with the NO.1 injection mold in China, to give the best quality of finished tubes and caps.

2.Injection mold for tubes and caps:

The molds adopt Husky hot runner, save material and keep good quality of products.

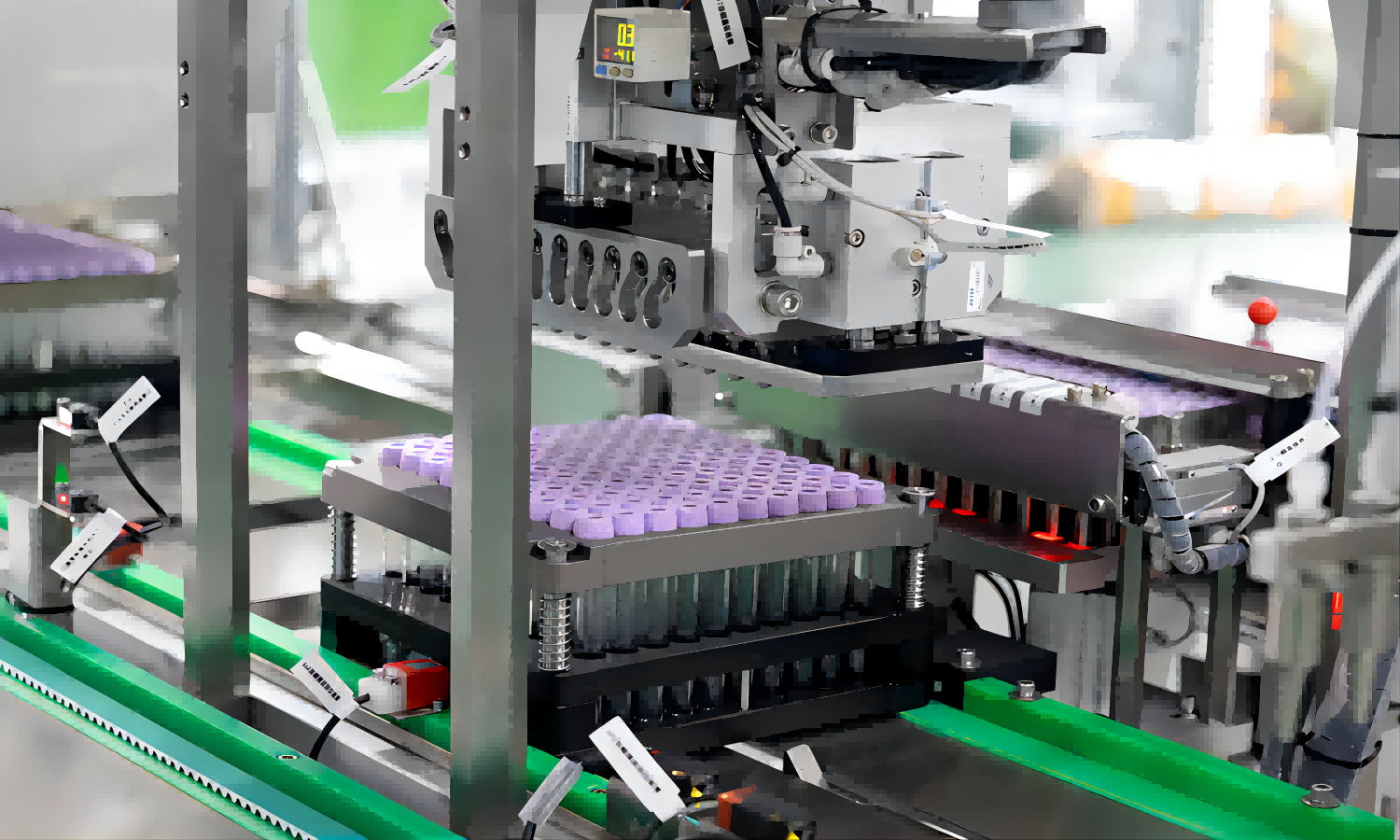

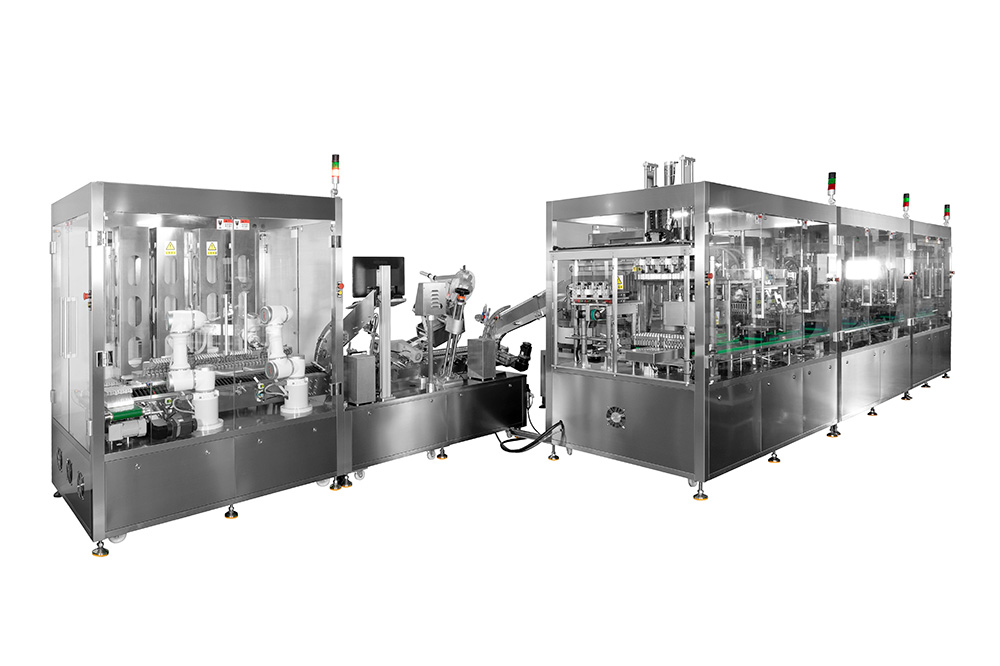

3.Vacuum blood collection tube assembling line:

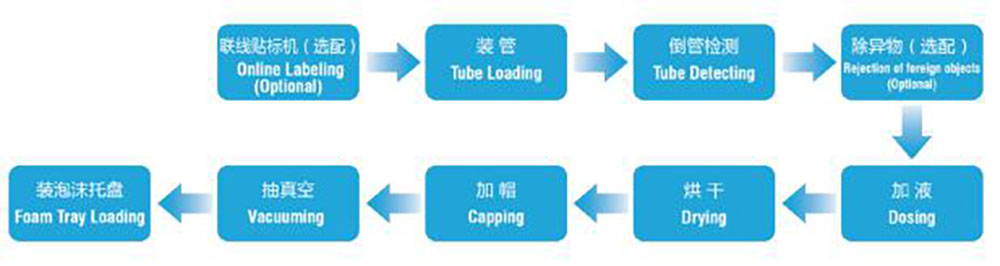

The blood collection tube production line includes tube loading, Chemical dosing, drying, stoppering & capping, vacuuming, tray loading, etc. Easy & safe operation with individual PLC &HMI control, only need 2-3 workers can run the whole line well.

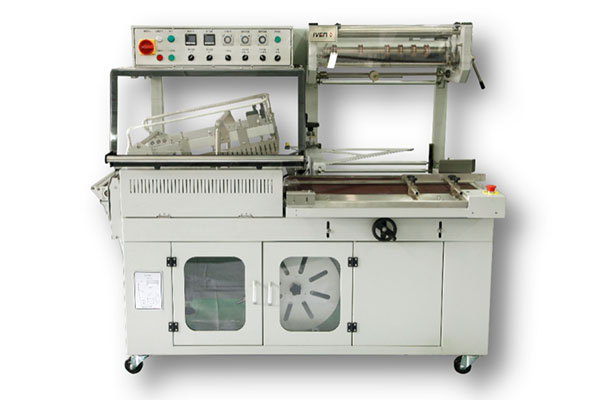

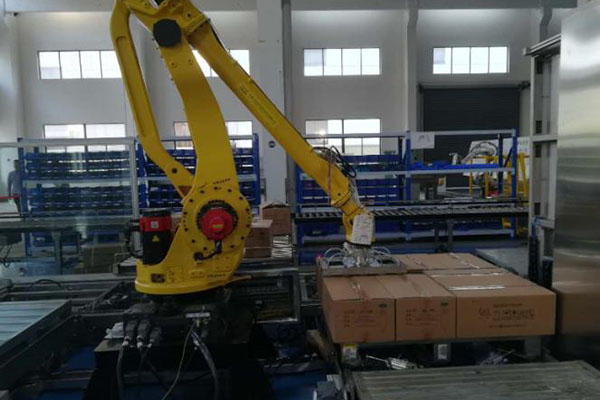

4.Packing line:

After vacuum blood collection tube assembling, it will be packed by shrink package machine, then put the finished products in the shipping carton. This process can be done manually or automatically.

5.Clean room & HVAC:

It includes clean room wall panels, ceiling panels, windows, doors, flooring, lighting, air handling unit, HEPA filters, air ducts, alarming, auto control system etc. To keep the key IV solution production process protected under Class C + A environment.

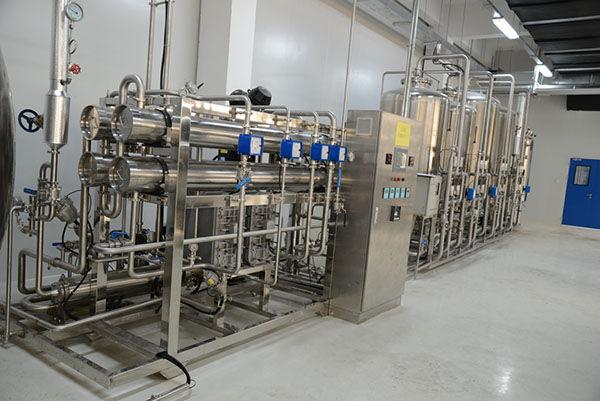

6.Pharmaceutical water treatment

It includes purified water treatment (2RO) and PW tank.

7.Air compressor system:

It is used to supply necessary compressed air vacuum blood collection tube turnkey plant.

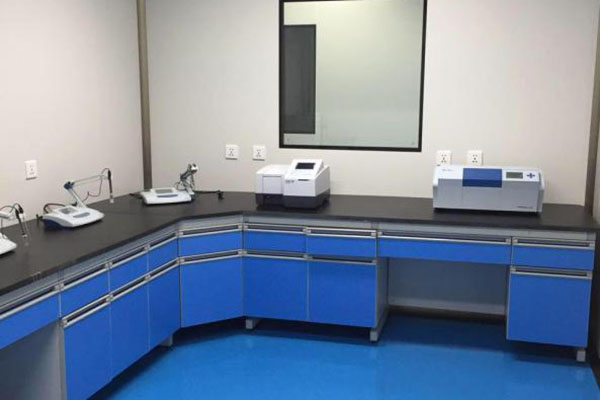

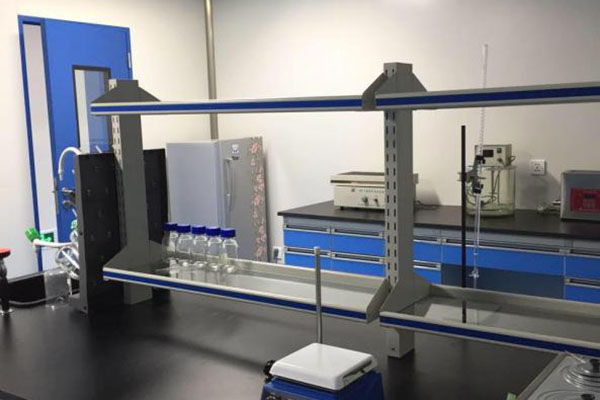

8.Laboratory:

It includes all kinds of lab testing instruments, and lab furniture to test the vacuum blood collection tube samples and raw material.

Advantages:

Sino Pharmatec have a very professional technical and engineering team, our onsite training and after-sales support can give long term technical assurance for your vacuum blood collection tube turnkey plant:

1031


Sino Pharmatec Full range of documentation can help you get GMP & FDA certificate for your IV fluid plant easily(Including IQ / OQ / PQ / DQ / FAT / SAT etc both in English and Chinese version):

1033

1035

IVEN profession and experience can help you finish whole IV solution turnkey plant in the shortest time and avoid all kinds of potential risks:




1040



What IVEN vacuum blood collection tube turnkey plant can benefit you?

1.One assembling line suits for 13*75mm, 13*100mm, 16*100mm tube

40

For Coagulant

41

For Glucose(liquid)

42

For Anticoagulant

43

For Sodium citrate

44

45

46

48

47

2.Remote control system for online trouble shooting

49

50

3.Auto connection between labeling and assembling line

4.Clean the empty tube by ionic air

52


5.Automatic ultrasonic washing for dosing nozzles.

6.Automatic tube loading & gel filling & tube Collection Machine

No need centrifuge with quality gel

Auto tube loading before gel filling

Auto tube unloading after gel filling

Utilization of gel rate reaches 99.9%

Gel mixing tanks with heating & insulation

54


7.CCD Detection with Auto Rejection

Detection Range:

Empty tube

Cap & Rubber stopper

Reagent

Label

56




65

3.Turkey Vacuum Blood Collection Tube Project - 1 Line

66

67

68


2.2


Main technical parameters for vacuum blood collection tube project:

1

Applicable Tubes

Ø13×75/100mm & Ø16×100mm PET tube(or glass tubes.)

2

Production Capacity

Coagulant:15000-18000 Pcs/H



Anticoagulant:15000-18000 Pcs/H



Sodium Citrate: 15000-20000 Pcs/H

3

Dosing Method &Accuracy

Coagulant

5 nozzles,

Ceramic syringe pump

≤5%

Basic 20ul



Anticoagulant

5 nozzles,

 USA FMI metering pump

≤5%

Basic 20ul



Sodium citrate

5 nozzles,              Ceramic syringe pump

≤5%

Basic 100ul

4

Drying Method

PTC heating way, equipped with high pressure fan

5

Cap Spec.

Upward Type

6

Applicable Form Tray

Interlace type and Rank type

2.5

Upward type cap

2.6

Interlace type foam tray
