Pharmaceutical Production Line

  • ISBM Filling Line
ISBM Filling Line

ISBM Filling Line

  • Brief Introduction

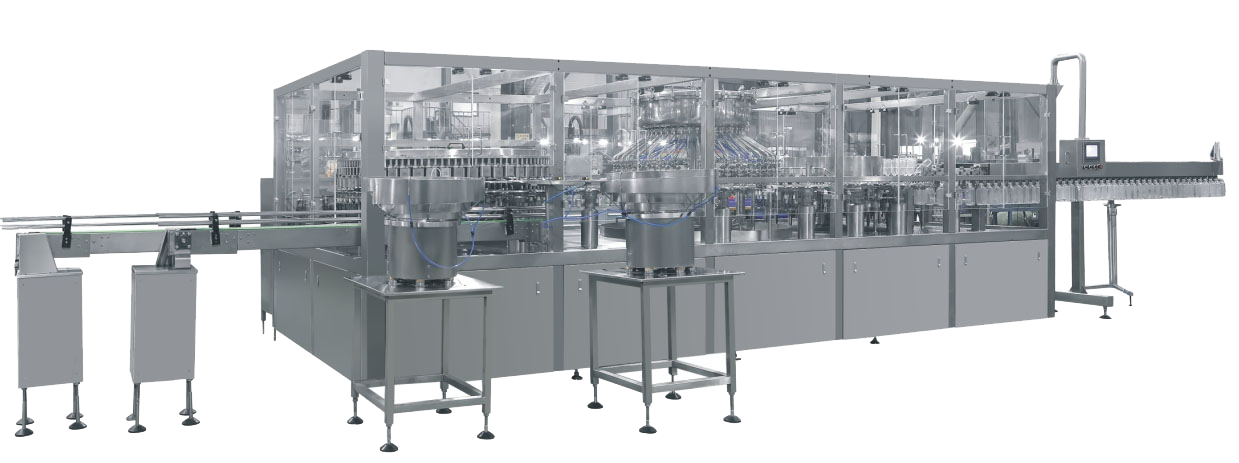

    XGF PP Bottle LVP Wash-Fill-Seal Machine has three sections, ionic air washing or ionic air plus water washing, constant pressure filling, and hot melting sealing. It can automatically finish the processes of bottle feeding, bottle entering, bottle reversing by manipulator, ionic air reversely blowing and washing, bottle conveying, fixed volume filling, cap sorting, cap feeding, simultaneously heating cap and bottleneck, air eliminating, hot melting sealing, bottle conveying out etc. It is mainly applied to the washing, filling and sealing production for PP plastic soft and hard bottle large volume parenteral, like glucose infusion, sodium chloride infusion, sodium chloride and dextrose injection,injection etc.

  • EMAIL

Main Features

1. Compact integrated design of wash-fill-seal with smaller production area

2. Applicable to any round or flat IV solution bottles with different shapes

3. Voice alarm when fault, and machine halt

4. PLV control, all operation data can be set, changed and kept on file

5. CIP/SIP on line

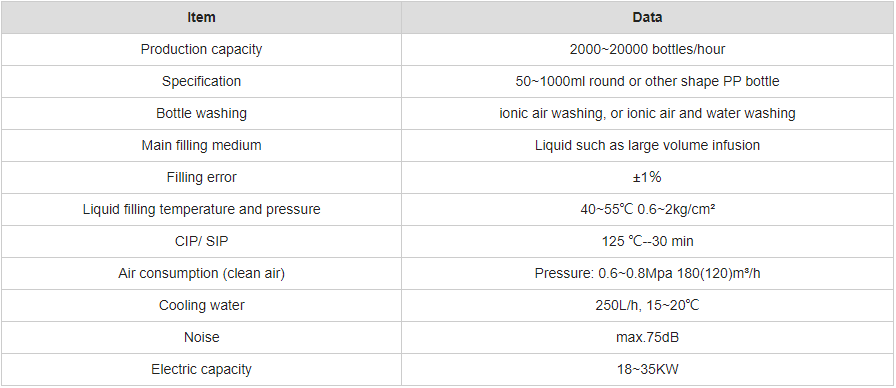

Technical Parameters
