Pharmaceutical Production Line

  • Injectable Vial Filling Line
Injectable Vial Filling Line

Injectable Vial Filling Line

  • Main Application

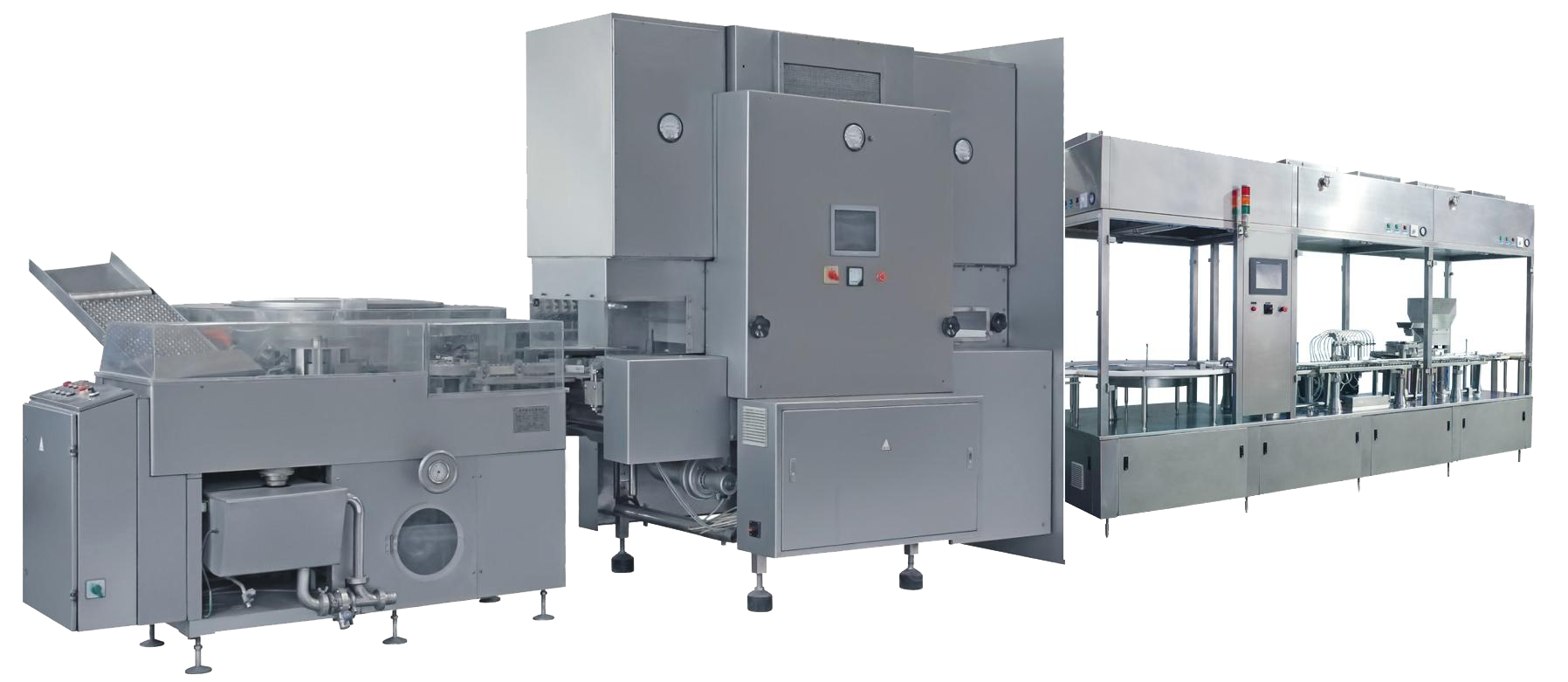

    This unit is made up of CLQ Ultrasonic Vertical Washing Machine, RSM Sterilizing & Drying Machine and KGYX Filling & Sealing Machine.
    Divided into three working areas of washing, sterilizing & drying and filling & sealing. It can be either used in-line or in the form of three single machines. Can automatically finish the processes of water spaying, ultrasonic wave washing, compressed air blowing, recycling water flushing, compressed air blowing, fresh high-temperature sterilizing, cooling, bottle-collating, filling, cap-collating, stopppering, panel mounting and so on for vials.
    Can be equipped with Servo-motor , more stability and accuracy.

  • EMAIL

Technical Parameters

ModelProduction lineSuitable sizeOutput(max)PowerNet weightOverall size
BXKZ ICLQ 402.25ml6000-12000 pcs/h69.8KW7500Kg9930×2500×2340mm
RSM 620/44
KGF 8
BXKZIICLQ 602.25ml8000-18000 pcs/h85.8KW8000Kg10830×2500×2340mm
RSM 620/60
KGF10
BXKZ IIICLQ 802.25ml10000-24000 pcs/h123.8KW8100Kg10830×2500×2340mm
