Main Features

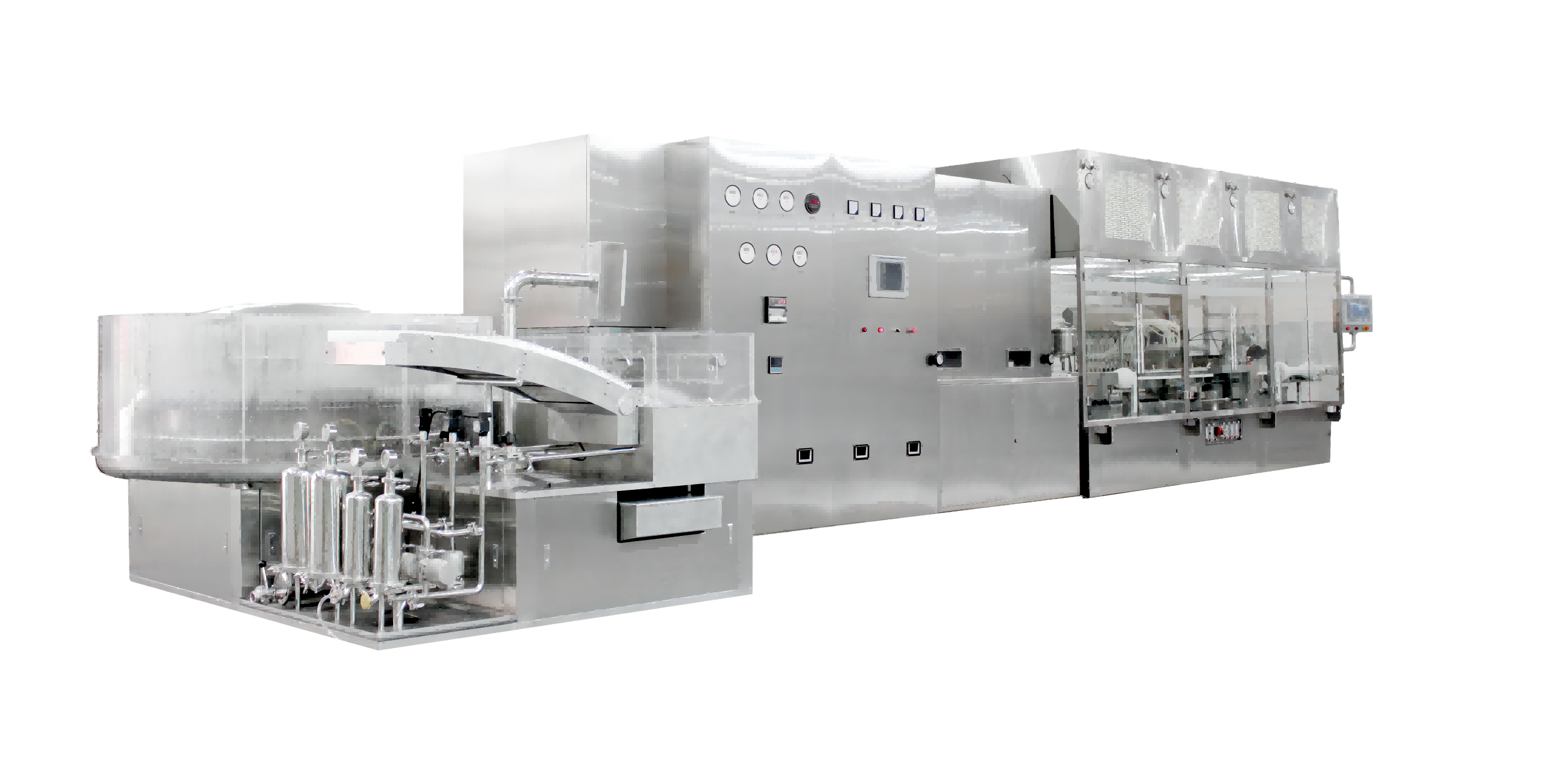

1The compact line realizes single linkage, continuous operation from washing, sterilizing，filling and sealing. The whole production process realizes cleaning operation; protects products from contamination, meets the GMP production standard.

2 This line adopts water and compressed air cross pressure jet wash and ultrasonic wash at inverted state. The cleaning effect is very good.

3 The ultra filtration technology is applied at the washing machine’s filter. The clean and sterile washing water and compressed air is obtained through terminal filter, which can improve the clarity of the washed bottle.

4 Bottle infeed auger and star wheel meet, the auger space is small. Ampoules can walk straight. Ampoules can transfer more stable and can hardly broken.

5 Double tank and double circulation. The circulation water tank and rough wash water tank are totally separate. The cleaning water is used step by step. The cleaning effect is much better.

6 The stainless manipulators are one side fix. The location is more accuracy. The manipulators are wearproof. When changing of pitch the manipulators no need stretch out and turn. The turning bearing wont contaminating the cleaning water.

7 The ampoules are sterilized by the hot air laminar flow sterilization principle. The heat distribution is more even. The ampoules are under the HDC high temperature sterilization condition, which meets the standard of GMP.

8 This equipment adopts negative pressure sealing principle to seal the high efficiency filter which are used for purify the tunnel. The filter is easy to install which can ensure the one hundred purification condition.

9 The equipment adopts hinge type seat heat and horizontal hot air fan structure. The maintenance of the equipment is more convenient and laborsaving.

10 This equipment adopts chain conveying belt with flank. The conveying belt won’t be off track, anticreeper, no bottle falling.

11 The equipment adopts advance technology such as multi-needle filling, front and rear nitrogen charging and wire drawing sealing, which can meet the standard of different type of products.

12 The fill-seal machine adopts balcony structure. The starwheel infeed and convey bottles continuously, the running of the equipment is stable and less bottle breakage.

13 This equipment is universal. It can’t be used to 1-20ml ampoules. Changing parts are convenient. In the meantime, the equipment can be used as vial washing, filling and capping compact line by changing some mould and outfeed wheel.

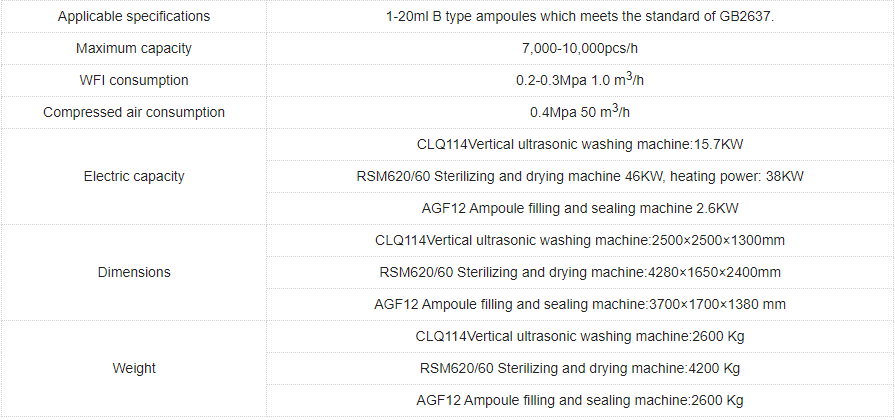

Technical Parameters
