Pharmaceutical Production Line

  • Capsule Filling Machine

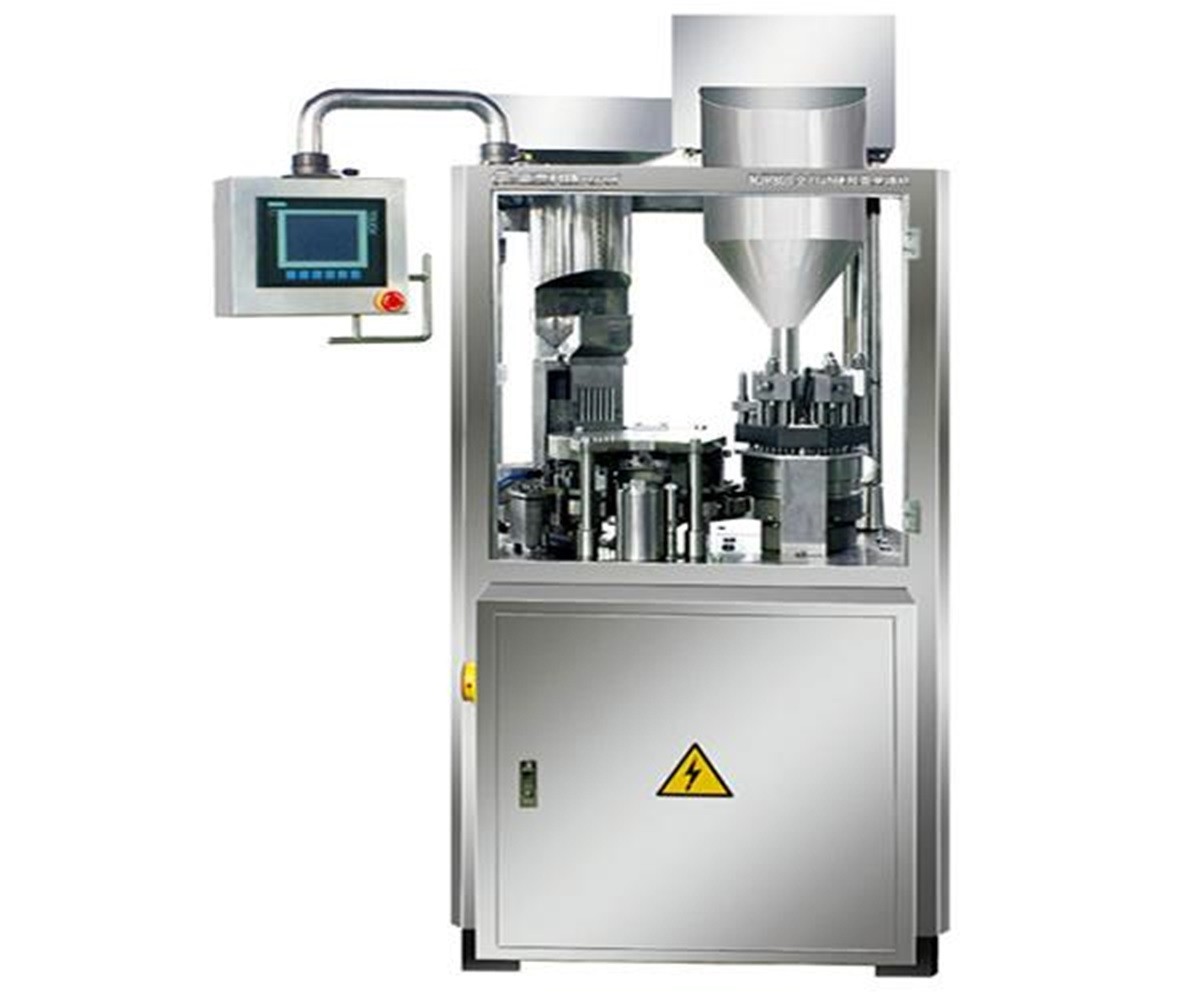

Capsule Filling Machine

Capsule Filling Machine

  • Brief Introduction:
    This capsule filling Machine is suitable for filling various domestic or imported capsules. This machine is controlled by a combination of electricity and gas. It equipped with electronic automatic counting device, which can automatically complete the positioning, separation, filling, and locking of the capsules respectively, reducing labor intensity, improving production efficiency, and meeting the requirements of pharmaceutical hygiene. This machine is sensitive in action, accurate in filling dose, novel in structure, beautiful in appearance, and convenient in operation. It is the ideal equipment for filling capsule with the latest technology in the pharmaceutical industry.

  • EMAIL

Product Description:

This capsule filling Machine is suitable for filling various domestic or imported capsules. This machine is controlled by a combination of electricity and gas. It equipped with electronic automatic counting device, which can automatically complete the positioning, separation, filling, and locking of the capsules respectively, reducing labor intensity, improving production efficiency, and meeting the requirements of pharmaceutical hygiene. This machine is sensitive in action, accurate in filling dose, novel in structure, beautiful in appearance, and convenient in operation. It is the ideal equipment for filling capsule with the latest technology in the pharmaceutical industry.


Tech Parameters:

Model

Njp-1200

Njp2200

Njp3200

Njp-3800

Njp-6000

Njp-8200

Output (max capsules /h)

72,000

132,000

192,000

228,000

36,000

492,000

No. of die orifice

9

19

23

27

48

58

Filling accuracy

≥99.9%

≥ 99.9%

≥ 99.9%

≥99.9%

≥99.9%

≥99.9%

Power (ac 380 v 50 hz)

5 kw

8 kw

10 kw

11 kw

15 kw

15 kw

Vacuum (mpa)

-0.02~-0.08

-0.08~-0.04

-0.08~-0.04

-0.08~-0.04

-0.08~-0.04

-0.08~-0.04

Machine dimensions (mm)

1350*1020*1950

1200*1070*2100

1420*1180*2200

1600*1380*2100

1950*1550*2150

1798*1248*2200

Weight (kg)

850

2500

3000

3500

4000

4500

Noise emission (db)

<70

< 73

< 73

<73

<75

<75
