Pharmaceutical Production Line

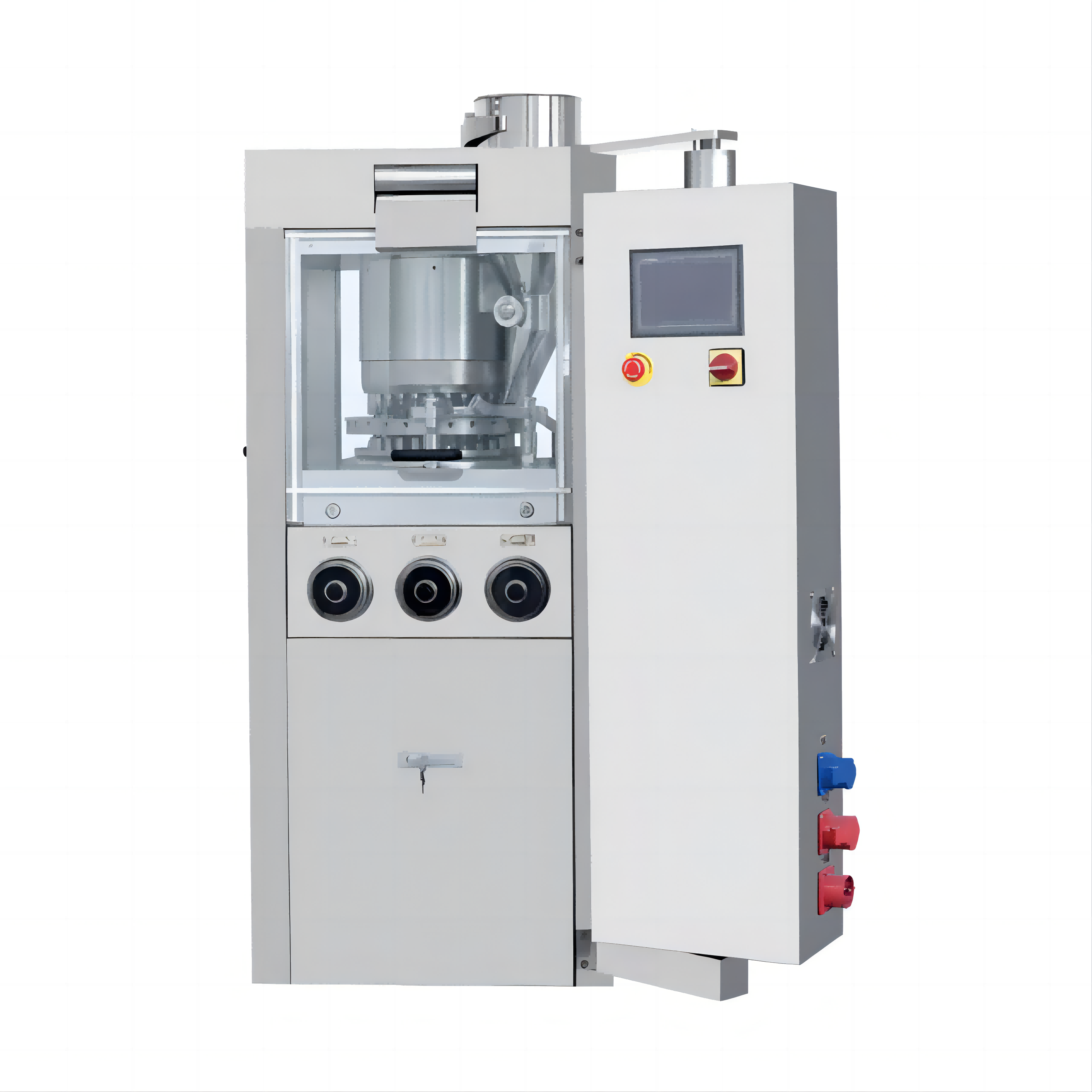

Tablet Press Machine

Brief Introduction:
This high speed tablet press machine is controlled by PLC and touch screen man-machine interface. The pressure of the punch is detected by an imported pressure sensor to achieve real-time pressure detection and analysis. Automatically adjust the powder filling depth of the tablet press to realize automatic control of tablet production. At the same time, it monitors the mold damage of the tablet press and the supply of powder, which greatly reduces the production cost, improves the qualification rate of the tablets, and realizes one-person multi-machine management.
EMAIL

Product Description:

This high speed tablet press machine is controlled by PLC and touch screen man-machine interface. The pressure of the punch is detected by an imported pressure sensor to achieve real-time pressure detection and analysis. Automatically adjust the powder filling depth of the tablet press to realize automatic control of tablet production. At the same time, it monitors the mold damage of the tablet press and the supply of powder, which greatly reduces the production cost, improves the qualification rate of the tablets, and realizes one-person multi-machine management.

Tech Parameters:

Model	Yp-29	Yp-36	Yp-43	Yp-47	Yp-45	Yp-55	Yp-75
Punch& die type (eu)	D	B	Bb	Bbs	D	B	Bb
Number of station	29	36	43	47	45	55	75
Max tablet diameter (mm)	25	16	13	11	25	16	13
Max oval size (mm)	25	18	16	13	25	18	16
Max output (tablet/hour)	174,000	248,400	296,700	324,300	432,000	528,000	72,000
Max filling depth (mm)	20	18	18	18	20	18	18
Main main pressure	100 kn
Max pre-pressure	100 kn				20 kn
Idle load noise	<75 db
Power supply	380 v 50 hz 15 kw
Size lwh	128012802300 mm
Weight	3800 kg
