Pharmaceutical Production Line

  • Eye Drop Filling Machine

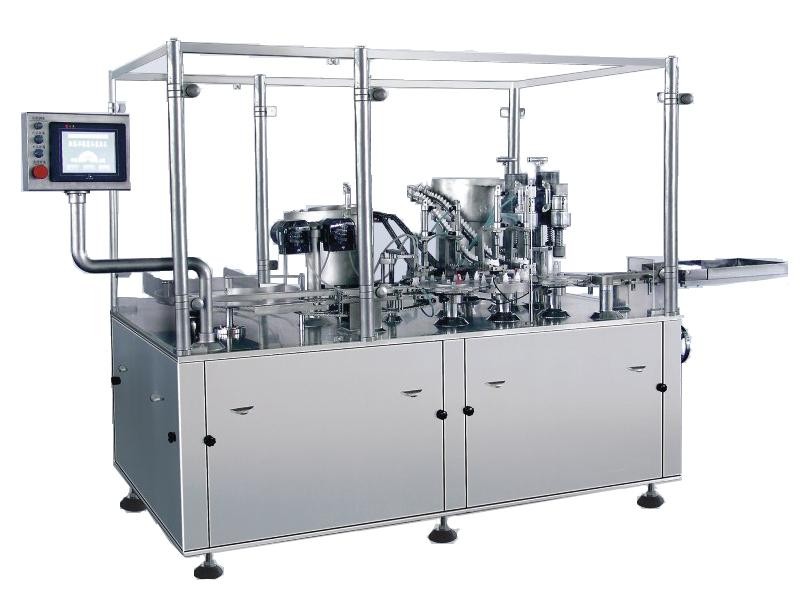

Eye Drop Filling Machine

Eye Drop Filling Machine

  • Eye Drops Filling Machine is a state-of-the-art technology designed for filling and capping 2-10ml eye drops. It incorporates several key technological features to ensure aseptic hygiene, it’s can CIP cleaning procedures, compliance with strict sanitary standards, and the use of robotic arms and vacuum technology for enhanced stability and precision.

    Airflow environment class A provided by the laminar flow hood
    Within the self-cleaning zone for the bottles, plugs, and caps
    Adopt aseptic gloves by operators for isolation operation
    Adopt six rotor peristaltic pump ensures accurate filling
    Automation control system enables the entire production process to operate automatically

  • EMAIL

Model

ALY-50
Filling pump range

2-10ml

Filling nozzles

2heads
Plugging head

one head

Capping head

one head
Filling speed

40-50bpm(depend on the filling volume)

Filling accuracy

±1%
Supply voltage power

380V/220V 50Hz 3.0kw

Weight

Around 1000kg
Overall dimensions

2600×1150×1700mm



Model

AFY-100
Filling pump range

2-15ml

Filling nozzles

4heads
Plugging head

two head

Capping head

two head

Filling speed

80-100bpm(depend on the filling volume)

Filling accuracy

±1%
Supply voltage power

380V/220V 50Hz 3.0kw

Weight

Around 1000kg
Overall dimensions

2600×1150×1700mm
