HOME > PRODUCTS > Pharmaceutical Production Line

Pharmaceutical Production Line

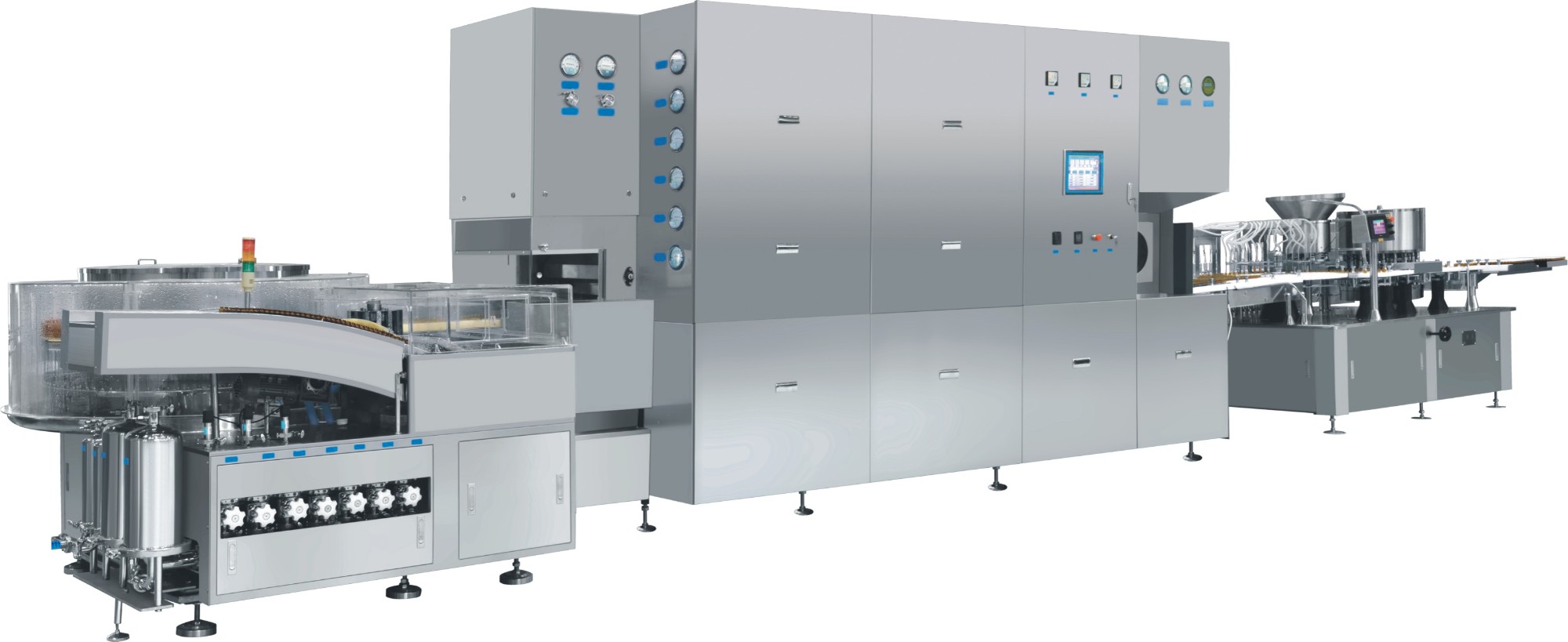

Syrup Production Line

Main usage
1. Production line made up of CLQ ultrasonic washing ,RSM drying &sterilizing machine,DGZ filling & capping machine
2.Can complete following functions of ultrasonic washing ,flushing, (air charging, drying& sterilizing) ,filling and capping /screwing.
3. Suitable for oral liquid and other other small dose solution , and with a labeling machine consisting an ideal production line.
EMAIL

Characteristics

1. Adopts advanced ultrasonic washing ,alternating washing with independent multiple nozzle washing with water,air separately and quartz tube ultraviolet hot radiation sterilizing with high temperature,advanced technology of multiple nozzle filling and sealing .

2. Compact structure,small occupying area.

3.Control system adopts photoelectric technology and PLC with color touch LCD screen , high automation,few operator.

4.Integrate machine (SQGF ) one machine can wash ,fill and screw bottle in one machine , reduce investment and production cost.

5. Universal parts ,few specification parts ,easy to exchange .

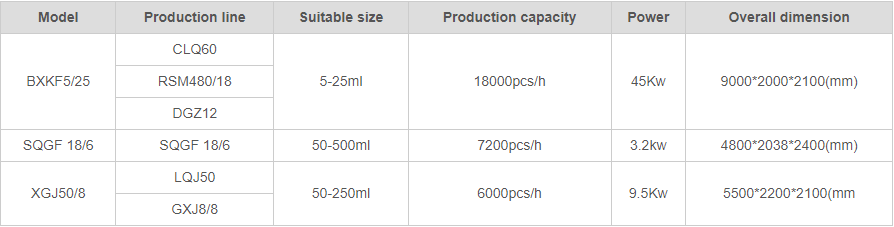

Main technical parameter
