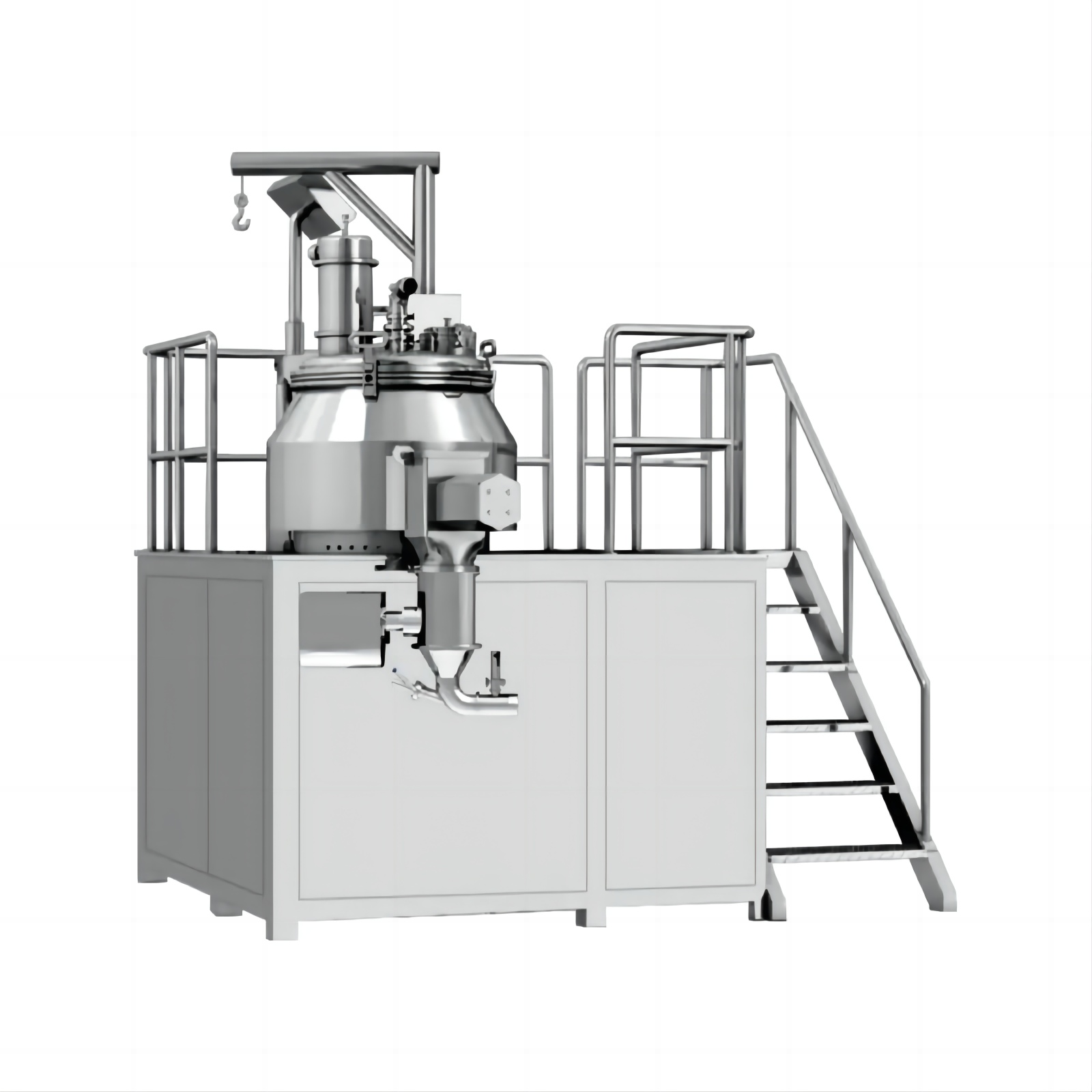

Wet Type High Shear Mixing Granulator

• 1. The whole machine is made of high quality stainless steel.

  2. It is provided with special mixing barrel and conical column of a compound structure. The corners on the inner wall are subject to smooth transition and mirror polishing with easy cleaning and without material sticking.

  3. The mixing and granulating procedure can be completed in one step with the materials in the closed mixing barrel.

  4. It adopts PLC control. The mixing and granulating motors are subject to variable frequency speed adjustment. All operations can be carried out automatically or manually.

  5. It is provided with interlocking protection device to ensure safer operation.

  6. It is equipped with printer to automatically print all process parameters, with the original records conforming to the actual ones.

  7. It can be equipped with wet granulation machine and swing granulator and connect with fluidized bed dryer to form a fully closed granulating production line.
